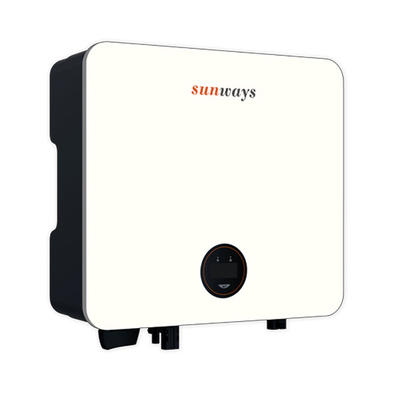

Sunways 2.5KW 2500W 2500 Watt Single Phase MPPT Single On Grid Solar PV Inverter With WIFI And DC Switch 327*297*114mm

1 Set
MOQ
$290.00(1 - 49 sets) $270.00(50 - 179 sets) $250.00(>=180 sets)
価格
Sunways 2.5KW 2500W 2500 Watt Single Phase MPPT Single On Grid Solar PV Inverter With WIFI And DC Switch 327*297*114mm
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: STS-2.5KTL-S
Input Voltage: Max.500V
Output Voltage: Single phase 220V/230V
Output Current: Max.4.8A
Output Frequency: 50/60HZ
Output Type: Single
Size: 327*297*114mm
Type: DC/AC Inverters
Inverter Efficiency: 97.3%
Certificate: ISO,CE, CQC, SAA
Warranty: 5 Years
Weight: 6.5kg
Product name: 2.5KW Single Phase Single MPPT On Grid PV Solar Inverter
Inverter type: on grid solar inverter
Output waveform: Pure Sine Wave Output Inverter
Protection Level: IP65
Frequency: 50 HZ 60 HZ
MPPT efficiency: 99.99%
Operating Temperature: -30~60
MPPT Voltage Range: 85-450V
Mppt solar charge controller: available
Protection: Overload, short-circuit
基本情報
証明: ISO,CE, CQC, SAA
Model Number: STS-2.5KTL-S
お支払配送条件
Packaging Details: carton box , wooden box and wooden pallet
製品の説明
Sunways 2.5KW / 2500W / 2500 Watt Single Phase Single MPPT
On Grid PV Solar Inverter with WIFI and DC Switch
Product Description

Our Pictures:

Our Design
Product Paramenters
Model
STS-1KTL-S
STS-1.5KTL-S
STS-2KTL-S
STS-2.5KTL-S
STS-3KTL-S
Input
Start-up Voltage (V)
60
60
60
60
60
Max. DC Input Voltage (V)
500
500
500
500
500
Rated DC Input Voltage (V)
360
360
360
360
360
MPPT Voltage Range (V)
80~450
80~450
80~450
80~450
80~450
Full power MPPT voltage range (V)
85-450
125-450
170-450
210-450
250~450
No. of MPP Trackers
1
1
1
1
1
No. of DC Inputs per MPPT
1
1
1
1
1
Max. Input Current (A)
12.5
12.5
12.5
12.5
12.5
Max. Short-circuit Current (A)
15
15
15
15
15
backfeed current to the array (A)
0
0
0
0
0
Output
Rated Output Power (W)
1000
1500
2000
2500
3000
Max. Output Power (W)
1100
1650
2200
2750
3300
AC output rated apparent power(VA)
1000
1500
2000
2500
3000
Max. Apparent Power (VA)
1100
1650
2200
2750
3300
Rated Output Voltage (V)
220/230
220/230
220/230
220/230
220/230
Rated AC Frequency (Hz)
50/60
50/60
50/60
50/60
50/60
AC output rated current（A）
4.4
6.5
8.7
10.9
13.1
Max. Output Current (A)
4.8
7.2
9.6
12
14.4
The measured Inrush current (A)
9.9A@28µs
12.5A@28µs
16.5A@28µs
20.3A@20µs
24.3A@20µs
maximum output fault current (A)
26
26
26
26
26
maximum output overcurrent protection（A）
26
26
26
26
26
Power Factor
0.8 leading …0.8 lagging
Max. total harmonic distortion
<3% @Rated Output Power
DCI
<0.5%In
Efficiency
Max. Efficiency
97.3%
97.3%
97.5%
97.5%
97.5%
European Efficiency
96.4%
96.4%
97.0%
97.0%
97.0%
MPPT Efficiency
99.9%
99.9%
99.9%
99.9%
99.9%
Protection
DC Reverse Polarity Protection
Integrated
Insulation Resistance Protection
Integrated
DC Switch
Integrated
Surge Protection
Integrated
Over-temperature Protection
Integrated
Residual Current Protection
Integrated
Islanding protection
Frequency shift, Integrated
AC Short-circuit Protection
Integrated
AC Over-voltage Protection
Integrated
General Data
Dimensions (mm）
327W*297H*114D
Weight (KG)
6.5
Protection Degree
IP65
Self-consumption at Night (W)
<1
Topology
Transformerless
Operating Temperature Range (°C)
-30~60
Relative Humidity
0~100%
Operating Altitude (m）
3000
Cooling
Natural Convection
Noise Level (dB)
<25
Display
OLED & LED
Communication
RS485，WiFi/ GPRS/LAN(Optional)
Compliance
NB/T 32004、IEC62109、IEC62116、VDE 4105、VDE 0126、AS4777、
RD1699、NBR16149、IEC61727、IEC60068、IEC61683、EN50549、EN61000
NOTICE: Please check the above certificates for each model. If you have special requirements, contact us freely.
Product packaging
Related Products
Project
Certifications
Company Profile
1. Sunways Origination
Sunways founded in Konstanz Germany in 1993, which focused on the development, manufacturing, sales, and service of high-quality professional photovoltaic inverters.

We has the existing STS 1~6kW residential series, STT 6~25kW small commercial series, STT 50~75kW industry series, and relative monitoring devices and portal, and the under-development STT 80~125kW ground PV-connected power station series and STH 5~12kW high-voltage hybrid series.
2.Our R&D Team
Sunways treat product quality as its life and technical innovation as its driving force. Developed a professional experienced, leading high-level, strong independent innovation capability R&D team. Sunways has about 50 professional R&D employees which have more than 10 years PV industry experience, and engaged with many scientific research institutions such as ISC Konstanz, Fraunhofer ISE, Konstanz University, Zhejiang University, and Solarvalley Mitteldeutschland, etc.
3.Production Capacity and Scale
Sunways has 6 hectares of land in Cixi, Zhejiang with a factory area about 4000 square meters. and now has introduced three automatic production lines. Our monthly production capacity is up to 10,000 sets.

In the meantime, our company has made a strategic plan to double its annual production capacity in three years, and by the year 2022, our production capacity will reach up to 20,000 sets in one month and this will greatly improve our customers’ confidence to us.
4.Quality Management
Sunways treat product quality as its life, from supplier, incoming quality, production to finished items inspection. By the way we also have most advanced testing laboratory to carry out a series of rigorous tests on batch products, and batch sampling the tracking the quality of finished products.
All of products have been certified by TUV and CQC ...professional test. Such as VDE0126-1-1(Germany), AS4777(Australia), RD1699(Spain), IEC61727, IEC60068, IEC61683(India), NBR16149(Brazil), etc.
5.Strategic Partners
Sunways treat product quality as its life, the high-quality components guaranteed the quality and reliability of our products. The raw materials such as electronic components, mechanism materials, and other auxiliary materials are 100% supplied by world-renowned brands such as Panasonic, Infineon, Texas Instruments, SiTime, etc.
Inductor/Capacitor：EPCOS, Nichicon, NCC, KEMET, Panasonic Connector/Switch：Santon, Wieland, OMRON, ZETTLER, MC4, Panasonic IC：SiTime. Texas Instruments，AVAGO, ON Semiconductor, Infineon, VAC, FAIRCHILD

FAQ
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.

2. Q: What's the warranty:
A: -Solar inverter: 5 years standard warranty
-External devices such as WiFi, GPRS, CT, Data logger and Meter come standard with a 2 years warranty

3. Q: What's the payment term?
A: Usually we accept T/T

4. Q: OEM is available?
A: Yes, OEM is welcomed.
