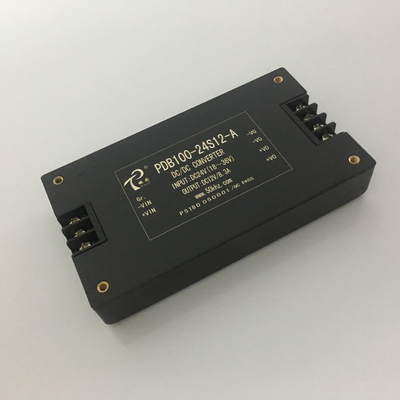

PDB-A/A1 series 24v high quality 12v to step down converter PDB-A/A1 series

1.0 Pieces
MOQ
PDB-A/A1 series 24v high quality 12v to step down converter PDB-A/A1 series
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: PDB-A/A1 Series
Output Power: 75~120W
Output Type: Single or Dual
Input Voltage: 12~110V
Output Voltage: 5~28V
Output Frequency: 160~200KHz
Output Current: 1~10A
Product Name: 24v to 12v step down converter
Warranty: 2 years
Color: black
Dimension: 116.4*65*21.5mm
基本情報
Model Number: PDB-A/A1 Series
お支払配送条件
Packaging Details: 30pcs/ carton (it's ok according to your requirement on 24v to 12v step down converter )
Supply Ability: 20000 Piece/Pieces per Week 24v to 12v step down converter
製品の説明
Product Description
Specification
Features

* Π type input filter
* High power density
* 2X, 4X voltage input
* Design for high reliability, long lifetime
* Easy installation, dual side pin out
* Attractive outline design


Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal
load.

Input Characteristic

Voltage range
12VDC (Normal Rated Value): 9 ~ 18 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC
48VDC (Normal Rated Value): 36 ~ 72 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
18VDC (Normal Rated Value): 9 ~ 36 VDC (4 times input)

Output Characteristic

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% (Typ)
* Output current …………………………………2-10A for optional
* Output voltage …………………………………5-48V
* Power ……………………………………………30-100W


General Characteristic

* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage * Input-output:>1500 VDC
* Input-case:>1050 VDC
* Output-case:>500 VDC
* Environmental Characteristic * Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃ Military II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃ Military: -55-+105℃

Protection features
Input undervoltage protection
Output overcurrent protection
Input overvoltage protection
Output short circuit protection
Over temperature protection
item
value
Place of Origin
China
Jiangsu
Brand Name
PengTu 24v to 12v step down converter
Model Number
PDB-A/A1 Series
Output Power
75~120W
Output Type
Single or Dual
Input Voltage
12~110V
Output Voltage
5~28V
Output Frequency
160~200KHz
Output Current
1~10A
Product Name
24v to 12v step down converter
Warranty
2 years
Color
black
Dimension
116.4*65*21.5mm
Packing & Delivery
Company Profile
Nanjing Pengtu Power Supply Co., Ltd was established in 2007, is located in NO. 26 Daxiaochang Road, Qinhuai District, Nanjing, China. Our company is a manufacturer specializing in power product development, design, production, sales and service company. Our company has R&D, Production, Marketing, Quality Control department and other functional departments, And has a number of high-tech talents, which college degree or above of our personnel is more than 50% of the total number of employees. Our company has not only passed ISO9001-2008 Quality System Certification, and some products through the Measurement of Jiangsu Province Academy of Sciences and National Electric Power Academy of Sciences and other authorities detection. Product safety and electrical properties fully comply with the Ministry of Information Industry YD/T731-2000 High Frequency Switch Rectifier Standard. In the power supply field, our company has independent research and development of AC/DC, DC/DC switching power supply module series mature products, power covers 3W-1000W. And our company strictly reference (GJB9001A - 2001) Nations Standard Quality Management System requirements, design and produce the special specifications of the power supply for the army and common customer. Since its establishment to now, our company adhere to the science and technology as the forerunner, take the technology as the backing, and constantly develop all kinds of hi-tech leading colleague's new products. Currently we has a number of national patent. Our company produces the "PengTu" brand power has been widely used in railway, military, aerospace, power, communication, control, instrument, car equipment, ship and major scientific research institutions, etc various fields, from the customer high praise. We will always remember the business philosophy "quality first service first", to provide users with convenient one-stop service. With our practical, innovation, refinement spirit of enterprise, we accelerate the company's technical innovation and product development and at the same time we will with more quality products, more detailed services and more excellent results return to the vast number of customers. Let us work together to create you and I better tomorrow.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
