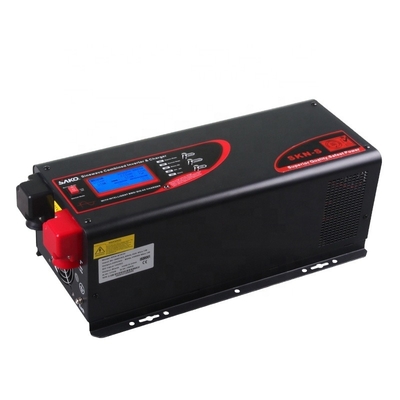

4000W Manufacturer moldified sine wave Home Inverter
This is a hybrid off-grid low frequency solar inverter(with Intelligent Big AC Charger / big transformer).
Equipped with big transfomer, Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, Its also have opposite connection protection.
| MODEL | SKN-S 1KW | SKN-S 2KW | SKN-S 3KW | SKN-S 4KW | SKN-S 5KW | SKN-S 6KW | ||||
| SPECIFICATION | ||||||||||
| DC INPUT | ||||||||||
| Input Voltage(Vdc) | 12V/24V | 24V/48V | 48V | |||||||
| Min DC start voltage(Vdc) | 10V/20V | 20V/40V | 40V | |||||||
| AC Bypass | ||||||||||
| Nominal Input Voltage | 2 Phase L1:120Vac+L2:120Vac+N Line | |||||||||
| Input AC Range(Vac) | 90-265V | |||||||||
| Frequency Range(HZ) | 57Hz -65Hz for 60Hz | |||||||||
| Input Frequency(Hz) | 60Hz (Auto detection) | |||||||||
| Bypass Output Voltage(Vac) | same as input voltage | |||||||||
| Bypass Output Frequency(Hz) | same as input frequency | |||||||||
| Max Bypass Overload Current | 10A | 20A | 30A | 40A | 50A | 60A | ||||
| AC Efficiency | > 95% | |||||||||
| Transfer Time(ms) | 20ms (typical) | |||||||||
| CHARGER | ||||||||||
| Charge mode Input Voltage Range | 95~255Vac | |||||||||
| Automatic Charge mode | Three stage charge mode:Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage) | |||||||||
| Nominal Charge Voltage | According to the battery type setup | |||||||||
| Charge Current(A) | 20A/27A/40A/55A | |||||||||
| Charge boost voltage(v) | According to the battery type setup( 12V BAT:14-15.5v 24V BAT: 28-31V 48V BAT:56-62V 96V BAT:112-124V) | |||||||||
| Charge Floating Voltage(V) | According to the battery type setup (12V BAT: 13.3-13.7, 24v BAT: 26.6-27.6, 48V BAT:53.2-55.2V 96V BAT:106.4-110.4V) | |||||||||
| Over Charge Protection | Bat. V ≥15.7Vdc, beeps 0.5s every 1s & fault after 60s (15.7 for 12v, 31.4V for 24V, 62.8V for 48V, 125.6V for 96V) | |||||||||
| Charger Short Circuit Protection | Circuit breaker | |||||||||
| (INVERTER) | ||||||||||
| Capacity(VA) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | ||||
| Output Power(W) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | ||||
| Power Factor(PF) | 1 | |||||||||
| Output Voltage | Single phase:240Vac /2 phase:120Vac+120Vac (Sine wave) | |||||||||
| Output Frequency | 60 0.3Hz(auto tracking main first power connection) | |||||||||
| Wave | pure sine wave | |||||||||
| Inversion Efficiency | >88% | |||||||||
| Over load capacity | (110%<load<125%) 10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) 10%: Fault (shutdown output) after 60s; Load>150% 10%: Fault (shutdown output) after 20s |
|||||||||
| Low Battery Alarm | 10.5Vdc 0.3Vdc for 12V battery, 21.0Vdc 0.6Vdc for 24V battery, 42.0Vdc 1.2Vdc for 48V battery, 84.0Vdc 2.4Vdc for 96V batter | |||||||||
| Power saver | Load 25W (Enabled on “P/S auto” setting of Remote control) | |||||||||
| AMBIENT | ||||||||||
| Noise(dB) | 60dB max. | |||||||||
| Temperature | 0°C to 40°C | |||||||||
| Humidity | 5% to 95% | |||||||||
| Sea Level(m) | 1500 | |||||||||
| DIMENSION | ||||||||||
| Product size L×W×H(mm) | L438mm*W184mm*H181mm | L608mm*W184mm*H181mm | ||||||||
| Packing size | L590mm*W312mm*H295mm | L808mm*W360mm*H352mm | ||||||||
| Weight(Kg) | 16.5/17.5 | 19/20 | 24/25 | 34/37 | 39/42 | 42/45 | ||||
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
