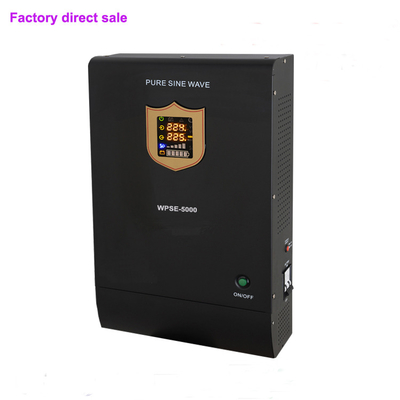

1. 5000VA wall-mounting type pure sine wave inverter UPS
WPSE series wall mounting type pure sine wave inverter UPS is one type low frequency inverter that converts DC to AC current as your back-up power. It has more stable quality than high frequency inverters'. And it can also work longer upon battery capacity. So power inverter apply for your commerical, industrial, household applications.
It has two working modes. The first working mode is inverter mode. When grid power is abnormal or outtage, it will change to inverter mode; when grid power is up&down, it will stabilize the input voltage and output stable power. And more technical details are as follow:
Model | WPSE-500 | WPSE-800 | WPSE-1000 | WPSE-1500 | WPSE-2000 | WPSE-2500 | WPSE-3000 | WPSE-5000 | |
Rated capacity | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 5000VA | |
Rated power | 300W | 500W | 700W | 1050W | 1400W | 1800W | 2100W | 3500W | |
Transformer | full power supply design C.R.G.O toroidal transformer | ||||||||
Interface | LCD graphic | ||||||||
Display status | working&loading&battery | ||||||||
working mode | PV (photovoltaic priority) AC priority optional | ||||||||
Input | voltage | 140-275Vac | |||||||
frequency | 45-65Hz | ||||||||
Output | voltage | 220V+-3% for inverter | |||||||
frequency | 50/60Hz +-0.3Hz, subjet to the main | ||||||||
wave form | pure sine wave | ||||||||
wave distortion | <=3% | ||||||||
Protection | overload, high temperature, output high voltage, short circuit, reversed polarity etc. | ||||||||
Transfer time | 4ms | ||||||||
battery voltage | 12V | 12V | 12V | 24V | 24V | 24V | 48V | 48V | |
charge voltage | 13.8+-0.5V | 13.8+-0.5V | 13.8+-0.5V | 27.6+-0.5V | 27.6+-0.5V | 27.6+-0.5v | 55+-1V | 55+-1V | |
low voltage limit | 10.9+-0.3V | 10.9+-0.3V | 10.9+-0.3V | 21.8+-0.5V | 21.8+-0.5V | 21.8+-0.5V | 42+-1V | 42+-1V | |
low voltage protection | 10.2+-0.3V | 10.2+-0.3V | 10.2+-0.3V | 20.5+-0.5V | 20.5+-0.5V | 20.5+-0.5V | 41+-1V | 41+-1V | |
Charge current | Max. 10/15/20A | ||||||||
cooling system | Yes | ||||||||
Environmental | Operating temperature | 0-40℃ | |||||||
relative humidity | 10%-90% RH, non-condensing | ||||||||
storage temperature | -15-45℃ | ||||||||
Packing | machine size(mm) | 259x257x149 |
310x312x167 |
540x330x130 | |||||
Qty/Ctn | 2 | 1 | 1 | ||||||
carton size(mm) | 670x360x235 | 420x400x265 | 645x435x245 | ||||||
G.W. kg | 7.30 | 7.90 | 9.30 | 10.30 | 27.00 | 15.30 | 16.60 | 22.10 |
2.Packaging&Shipping
1PCS/1 gift box; 1gifts boxes/carton, it is better shipped by full container by sea
carton box size: 540x330x130mm
G.W./CTN:26Kgs
3.Our Services
1)We can offer sample tested before placing orders, but customer have to pay sample charge and freight charge.
2)We can offer you spare parts upon your quantities of orders
3)we can offer after-sales services when you have questions online
4.Our Company Information:
Huizhou Yinghua Electronic Co., Ltd is a professional manufacturer and solution provider of electronic power products, sourcing from pure military descent.
We persist in being professional, perfect, excellent, strong running business concept when Yinghua Electronic Co., Ltd established. We also stick to advanced technology, top quality, being honest, mutual benefit and double-win concept. We have advanced equipment and testing center, professional and stable skilled workers, building quality-approved system as military mode. Moreover, Centering on the customer is our goal that we offer customer professional, high quality products and pro-sale and after-sale services all the time.
Our main products are AVR/voltage stabilizers, voltage boosters, UPS/Inverters, solar inverters, solar charger controllers, voltage converters and transformers etc.
5. Our sales team on Canton Fair
6.FAQ
1). Do you have certifications of your products?
Ans: Yes, our products veritified by CE, CQC, SONCAP
2). How do you prove that your products are with good quality?
Ans: our products must be passed with strict IQC inspections, 100% online testing, under loading and burn-in testing
3). How about warranty?
Ans: 1 year for warranty
4). Can you send us samples ?
Ans: Yes, samples are available when you confirm payment
5). Where is your factory?
Ans: Our factory located in Futian town, Boluo county, Huizhou city in Guangdong province. 1.5 hours' drive from Guangzhou or Shenzhen.
